Features

  • Functions by main arms moving first while smaller, secondary arms move after main arm cylinders experience resistance.
  • 54ˮ wide frame keeps long material stable.
  • 48” ITA Class II forged tines rated at 6200 pounds.
  • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
  • Greasable 1 1/4” diameter cylinder and hinge pins.
  • Machine specific hydraulic package to completely protect hose routing.

Specifications

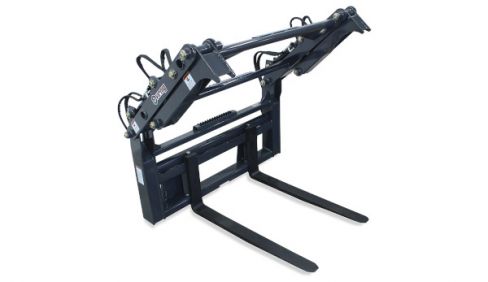

MODEL PPFG4-CYL
Overall Width (Inches) 69.0
Overall Height: Open / Closed (Inches) 65.0 / 44.0
Overall Depth (Inches) 58.0
Grapple Arm Width (Inches) 11.4
Grapple Arm Depth (Inches) 30.4
Tine Space: Min / Max (Inches) 8.9 / 49.0
Tine: Length / Width / Thickness (Inches) 48.0 / 4.0 / 1.75
Lift Capacity (Pounds) 6200
Approximate Weight (Pounds) 1110
Recommended Loader Capacity Greater than 1500 pounds
