Features

  • Optimized for skid loader use with angles mount plate and high visibility brickguard.
  • Standard ITA Class II forged tines rated at 5,500 lbs per pair.
  • 1 9/16″ diameter shaft.
  • Comes with one step and hardware to install on either side.

Specifications

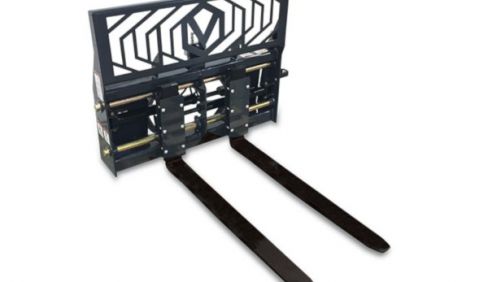

MODEL PFHA48TG
Width: Overall w/ Step / Frame (Inches) 50.1
Overall Height (Inches) 40.1
Tine: Length / Width / Thickness 48.0 / 4.0 / 1.5
Tine Space Min / Max (Inches) 7.8 / 38.2
Approximate Weight (Pounds) 705
Capacity (Pounds) 5500
Recommended Loader Capacity Greater than 1500 pounds
