Virnig TDM60
Double tap to zoom
V70 Tree Disc Mulcher TDM60
Overview:
Efficiently mulch 6-8” diameter trees and quickly cut up to 14” diameter trees.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- BENT-AXIS PISTON MOTOR WITH RELIEF VALVES
- STANDARD MOTOR GUARD & SPINDLE GUARD
- 60″ FULLY-MACHINED PERFECTLY BALANCED QUADCO® DISC
- BOLT-ON STEEL TOOTH MOUNTS WITH FOUR-SIDED ROTATABLE & REPLACEABLE TEETH (CARBIDE TEETH AVAILABLE)
- 3 DECK MOUNTED TEETH & RECUTTER BAR FOR A FINER FINISH
- 3/8″ GRADE 80 INTERIOR DECK WELDMENT
- REPLACEABLE PUSH BAR, CHUTE & DEFLECTOR
- TWO CHUTE STYLES Choose from two chute styles; standard or open. See options tab for details.
Specifications
| MODEL | TDM60 |
| Cut Width (Inches) | 60.0 |
| Overall Width (Inches) | 70.0 |
| Overall Height (Inches) | 40.5 |
| Overall Depth (Inches) | 77.5 |
| Deck Height (Inches) | 11.0 |
| Push Bar Height (Inches) | 40.5 |
| Minimum Cut Height (Inches) | 2.1 |
| Cutting Capacity, Diameter (Inches) | 14 |
| Number of Teeth: Top / Bottom / Outside | 12 / 20 / 12 |
| Maximum Disc Thickness (Inches) | 1.25 |
| Deck Thickness: Top, Side / Inside (Inches) | 0.25 / 0.375¹ |

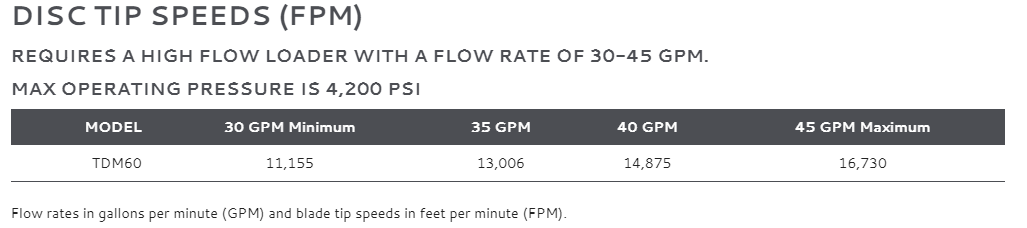

| Recommended Flow Rate (GPM) | 30-45 High Flow Only |
| Approximate Weight (Pounds) | 2710 |
| Recommended Loader Capacity | Greater than 2800 pounds |
*Inside Deck Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength)
