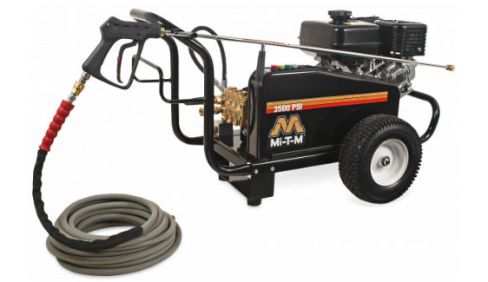

Mi-T-M CW Gasoline Series - CW-3504-5MGS

/ NOT AVAILABLE

Double tap to zoom



Features

Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system allows more water into system to protect from heat build-up

Engine: Performance-proven 404cc Subaru OHC engine with low-oil protection

Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · Two-piece belt guard with 1/4-turn release for quick access to belts · Convenient gun/wand holder and hose wrap · Dual rubber isolators · Flat-free tires · Solid steel threaded axle

Component: Dual cogged belt drive system for increased belt life

Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

Specifications

PSI 3500
GPM 3.8
Displacement/Engine 404cc Subaru OHC
Weights & Dimensions
Net Weight 216 lbs.
Shipping Weight 290 lbs.
Length 46 in.
Width 28 in.
Height 30 in.
