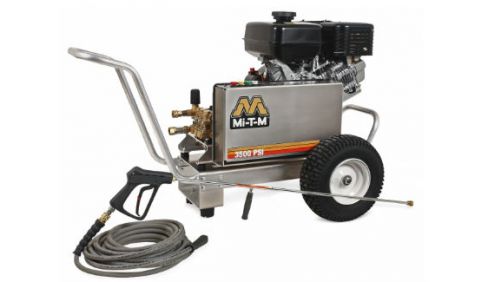

Mi-T-M Gasoline Belt Drive - CBA-3504-1MAS

/ NOT AVAILABLE

Double tap to zoom



Features

Pump: Belt drive triplex piston AR pump with ceramic plungers · Forged brass manifold · Stainless-steel and brass Mi-T-M unloader with adjustable pressure · Thermal relief valve · Water filter with clear sleeve for screen inspection

Engine: Performance-proven Subaru OHC engine with low-oil protection

Frame: Patented vibration isolation plate with four rubber isolators for reduced movement · Lightweight, corrosion resistance aluminum frame and base plate with 1-1/4-inch tube handles · Two-piece belt guard for quick access to belts · Solid 7/8-inch diameter full-length threaded axle · Convenient nozzle holder for quick connect nozzles · Flat-free tires · Dual rubber isolators

Component: Dual cogged belt drive system for increased belt life

Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

Specifications

PSI 3500
GPM 3.7
Displacement/Engine 404cc Subaru OHC
Weights & Dimensions
Net Weight 165 lbs.
Shipping Weight 215 lbs.
Length 47 in.
Width 27.5 in.
Height 28.5 in.
