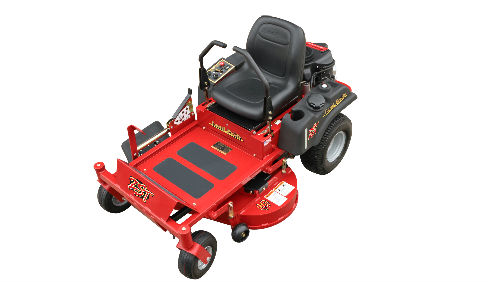

Land Pride ZST40 » Roeder Implement Inc., Iowa

Double tap to zoom



Features

FEATURES BENEFITS
1" to 4 1/2" Cutting height Provides a good range of cutting heights in 1/2" increments for any type of turf grass.
Narrow drive tire stance Provides good maneuverability. Allows for tight turns, yet gives a very stable platform over uneven ground.
High ground speed Can mow a lot of grass in a short time. 6 MPH forward and 4 MPH reverse
Adjustable steering levers with comfort grip handles Wide range of adjustments to accommodate almost any size of operator. Grips are designed for operator comfort and sustained productivity.
Frame design Square tubing welded for increased durability.
Single welded 11 gauge deck with reinforced leading edge Makes a stronger deck and reduces unwanted flex.
Rapid deck height adjustment The foot operated deck lift and deck stop pin locator makes for a quick and easy precise cutting height adjustments.
Easy clean-out deck top Deck allows air & debris to move across its top for improved belt cooling and easy clean out.
Mid-mount deck design Puts deck closer to operator's line of sight for more efficient and precise operation.
Floating deck design Provides good flotation over uneven terrain.
Anti-scalp roller(s) Keeps scalping to a minimum.
Hydro-Gear Zero-Turn Transaxle drive unit on each rear wheel Each rear wheel has an integrated hydrostatic transaxle containing a pump with fan for cooling and drive motor. These units are self contained and maintenance free.
4-Bolt, 18 x 7.5 - 8 rear turf tread tires Offers excellent ground flotation and gentle on turf grasses.
11 x 4-5 front ribbed tires mounted in heavy duty pivoting caster forks Provide for a quick and durable turning response.
Electric clutch control Provides an easy smooth engagement of the mower blade drive system.
Single Kevlar drive belts Drive belts made with KevlarTM fiber provide long belt life. One hydrostatic pump drive belt and one deck drive belt is easier to maintain and not as expensive as multiple belt designs.
1 3/8" blade spindles mounted in ductile iron housings Blade spindles and spindle housings are designed to handle heavy shock loads.
Accessible blade spindle zerks Makes greasing the blade spindles easy.
Heavy duty heat treated Fusion® medium lift blades Made from highest quality 1/4" thick fusion treated steel for high wear and increase blade life.
High blade tip speed Provides a clean quality cut. (18,300 fpm and higher)
Electric start with choke control Keyed ignition and manual choke control are placed for one-handed starting convenience.
Engine oriented for easy access Oil dipstick, oil drain ports, air filter, oil filter, spark plugs, choke and throttle can be serviced from the rear verses the side.
Center mounted rear engine Provides maximum mower stability, easy service access, increased leg room, and increased air flow around engine fins to extend engine life.
Internal air filter cartridge Easy to access.
Isolated exhaust muffler Kawasaki Muffler is hidden and tucked down under to reduce noise and provide protection against burns.
Ergonomically designed control console Instrumentation and console controls are positioned for easy visual and fingertip access.
Hour meter Measure actual engine run time to monitor service intervals.
Sleek styling three gallon fuel tank with an extra large fuel cap 3 Gallon fuel capacity for plenty of operating range and decreased down time. Extra large fuel openings for easy fueling. Fuel caps are center mounted to protect caps from damage and prevent overflow spills on inclines.
Molded-in cup holder Tank is molded with a cup holder that fits a wide variety of cups and is in easy access to the driver.

Specifications

  • 40" Width
  • 1" - 4.5" Cutting height
  • Square tubing welded frame design
  • Floating deck design
  • Foot operated deck height
  • Adjustable steering levers
  • Mid-mount deck design
  • Lever activated park brake
  • 15 HP
