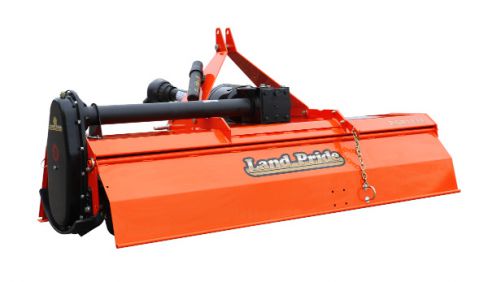

Land Pride RGR1266 » Roeder Implement Inc., Iowa

Double tap to zoom



Features

Features Benefits
American made American made means better quality & parts availability. Most tillers are imported.
Tractor hp range 42" & 50"
58" & 66"
74"
82"
18-60 hp
23-60 hp
30-60 hp
35-60 hp
Reverse tilling action (RGR only) Reverse action ‘sucks’ tiller into ground, does not walk on top of hard ground like
forward rotation tillers can.
42", 50", 58", 66", 74", & 82"
Working widths
A wide range of widths are available to meet specific customer needs.
7" Tilling depth For deep soil penetration.
Formed plate steel upper hitch Plate steel is stronger than flat bar type hitch.
Fits Land Pride Quick Hitch Allows for quick and easy one person hook-up.
Park stand Allows for easy hook-up and storage.
Adjustable skid shoes Control depth with seven adjustments
Formed and reinforced
rear deflector
Keeps dirt in and leaves a level finish. Forming gives deflector additional strength.
Adjustable deflector allows for various finish results.
Front deflector (RGR only) Front deflector is flexible to take the beating from rocks or debris.
Bolt in rotor Rotor removes and replaces easier for servicing.
17" Rotor swing diameter For deep tilling and turns the soil over faster.
Six “C” shaped, heat-treated
tines per flange
“C” Shaped tines require less hp to move through the ground.
Six tines per flange make for a better seedbed in less time than four tines.
Double lip seal on rotor bearing Double lip seal helps keep the dirt out and the grease in.
Fully shielded slip-clutch driveline Protects gearbox and rotor shaft upon hitting obstructions.
Slip-clutch saves having to replace shear-pins.
Gear drive
enclosed in oil bath
Gear drive requires less maintenance than roller chain drive.
Oil bath keeps wear to a minimum.
Stamped gear case cover Stamped forming gives the chain cover strength.
Optional BX driveline This driveline will fit B and BX Kubota tractors without cutting it to fit.
Not quick hitch adaptable for B & BX Kubota tractors.

Specifications

Model Number RGR1266
Recommended tractor PTO hp 23 to 60 hp
Weight 567 lbs.
Working depth 7 in.
Working width 66"
Overall width 71 1/2"
3-Point hitch type Category I, 3-point plate steel A-frame, Fits Land Pride Quick Hitch
Driveline Category 4 with Slip Clutch
Optional BX driveline Category 4 with Slip Clutch, Not recommended with Quick Hitch
Number of flanges on rotor 8
Number of tines per flange 6
Tine construction Alloy steel heat-treated “C” shaped blades
Rotor rotation Reverse rotation
Rotor swing diameter 17"
Rotor shaft speed 211 rpm at 540 rpm PTO
Rotor bearing mount Machined cast iron with ball bearings
Skid shoes Adjustable
Park stand Adjustable
Rear deflector Adjustable
Front deflector Rubber
Gearbox construction 60 hp input at 540rpm 1.92:1 ratio, Cast iron housing with ASAE 1 3/8" - 6 spline shaft,
tapered roller bearings, bevel gears, drain plug, level plug & fill plug
Gearbox lubrication 2 Pints of SAE 80-90W EP oil
Drive end construction Spur gears enclosed in an oil bath with oil level plug or sight glass and oil fill/breather plug
Gear case lubrication 6 Pints of SAE 80-90W EP oil
Spur gears Case hardened teeth
