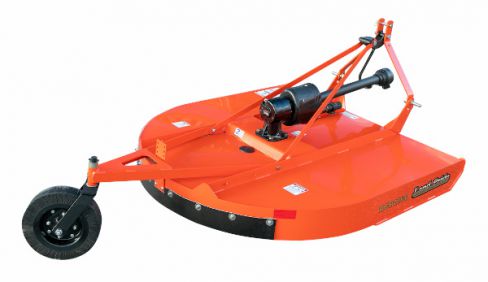

Land Pride RCR1242 » Roeder Implement Inc., Iowa

Double tap to zoom



Features

FEATURES BENEFITS
Surpassed rugged industry standards All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.
Tractor HP range 18 - 60 HP
Cat. 3 driveline with shearbolt Shear bolt offers maximum driveline protection.
Cat. 3 driveline with 2-plate slip-clutch Slip-clutch driveline offers convenience for continual work.
Floating top link Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors
Round back design Helps discharge grass better than enclosed or partially enclosed cutters.
1 1/4” - 10” Cutting Height Cutting height for wide range of cutting conditions.
Skid shoes (Accessory) RCR1260 & RCR1272 only Provides sidewall reinforcement and helps protect bottom of sidewall.
1/2” x 3” Heat-treated free swinging blades Free swinging protects from obstructions. Heat-treated offers longer life.
Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper Allows cutter to slide over obstructions protecting the gearbox output shaft.
High blade tip speed Ensures clean cut.
Laminated tailwheel Laminated material is long lasting in rough conditions and can’t go flat.
Heavy-duty spindle on tailwheel 1 1/4” spindle gives the strength to protect tailwheel assembly.
Rubber guarding Protect against flying debris.
Metal Guarding Protects against flying debris.

Specifications

Model RCR1242
Weight
(With front & rear guard, shear
bolt drive-line & laminated tire)
385 lbs.
Hitch Category l (Quick hitch ready)
Cutting Width 42"
Overall Width 45 1/4"
Overall Length (Including
Tailwheel)
83"
Deck Height 7 1/4"
Cutting Height 1 1/4" - 10"
Cutting Capacity Grass, weeds & light brush
Recommended Tractor HP 18-40 hp
PTO Speed 540 rpm
Gearbox Rating HP 60 hp
Gearbox (Speed up beveled
gears)
1:1.93 Speed-up
Cast iron housing
Gearbox Lubrication & Capacity 1.9 Pint (.9 L) With new Comer gearboxes - 1.1 Pint (0.52 L) of gear lube 80-90W EP
Deck Construction 1 Piece reinforced deck
Deck Material Thickness 12 Gauge
Skids 12 Gauge (Formed in deck)
Skid Shoes Not Available
Stump Jumper Round Pan 10 ga x 24"
Blades (2) 1/2" x 3" Heat treated alloy steel
Free-swinging blades
Blade Bolts Keyed with harden flat washer and lock nut
Blade Tip Speed 11,417 fpm
Drive-line ASAE Category 3
Drive-line Protection Options 1/2" Center shear bolt protection or center bolt 2 plate slip clutch
Tailwheel 4" x 8" Laminated tire and yoke
Safety Guards Rubber (standard front and rear)
