Features
Features | Benefits |
Surpassed rugged industry standards |
All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures. |
Factory assembled | Saves customer set-up time and money. Adjustments should always be made by dealer. |
250 HP divider gearbox 130 HP center & wing gearboxes |
A rugged heavy-built gearboxes capable of handling heavy-cutting applications. |
Gearbox Seal Protection | Gearbox bottom seal protection for longer bearing life. |
2" Output gearbox shaft | Large output shaft handles shock loads better. |
Input driveline: Cat. 6 CV or Cat. 5 Conventional |
Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
Easy Greasable drivelines | Drivelines have access holes for greasing the U-joints and to grease the inner profiles. |
2 or 4 Plate slip-clutch | Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when impacts are encountered. |
High blade tip speed | Allows clean cutting of material & even distribution. See Specifications for actual FPM. |
6" Blade overlap | Eliminates skipping during turns. |
Good cutting capacity | Can cut brushy areas with saplings up to 2". |
13" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
10 Ga. stump jumper backed with a 1" x 4 1/2" thick blade mounting bar |
Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft. Can hold up to tough conditions. |
Spindle Nut Protected | Spindle nut and threads extending beyond the nut are guarded to protect against damage from hitting solid objects. |
10 gauge smooth deck top | Reduces accumulation of debris and is easier and faster to clean. |
1/4" side skirt | Reduces debris piercing possibilities. |
Self-leveling hitch | Reduces drawbar wear by keeping hitch level while going through ditches. |
Hinged wing section | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
1" Solid hinge rod | Larger diameter hinge gives greater strength to cutter and hinge area. |
Wing transport lock | Holds transport wing in the folded-up position in case of hydraulic pressure loss. |
Enclosed front to rear dual leveling rods |
Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod. |
5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
Drain holes in wheel rims | Allows water to drain from wheels mounted on the folded-up wing. Helps prevent paint deterioration and rusting to the wheel rims. |
Spring-cushioned center axle | Protects unit from bumps and ground shock, cushions loads on drawbar. |
Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. Simply remove one bolt to replace damaged spindle. |
Rephasing lift cylinders | Allows cutter to be leveled using hydraulic cylinders verse mechanical turnbuckles. |
7/8" Leveling rods | Large diameter leveling rods provide superior supporting strength over rough terrain. |
Double swivel hitch option | Great for uneven terrain, reduces drawbar wear. Must use spacer washers on drawbar. |
Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
LED Signal lights | LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts. |
Wheel options | Laminated tires: Eliminates flats. Airplane tires without foam filling: Give better cushion while transporting. Airplane tires with foam filling: Give better cushion while transporting & can’t go flat. |
Deck rings (optional) | Keeps blades from damaging the deck. |
Specifications

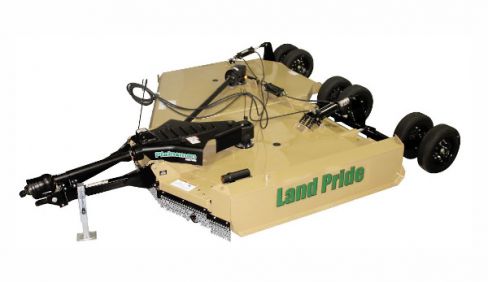

Specifications & Capacities | RCM3614 |
Tractor horsepower | 70 to 160 hp |
Gearbox horsepower | 250 hp Splitter 130 hp Center & Wing |
Gearbox oil capacity | 5.18 Pints: Divider Gearbox 6.76 Pints: Center deck, LH deck & RH deck spindle gearboxes |
Gearbox lubrication | Gear Lube 80-90W EP |
Cutting capacity | 2" |
Machine weight hitch weight total weight |
Chain guards, 5 AC tires and standard clevis. 2,220 lbs. 5,620 lbs. |
Blade tip speed | 16,500 fpm |
Hitch types | Optional Self-Leveling Clevis Hitch, LP Performance Hitch, Bar-Tite Hitch, Pintle Hitch, or Ball Hitch |
Hitch jack | Standard (7,000 lbs.) |
Signal Lights 7 Pin connector |
LED SAE J5560 pin configuration |
Cutting width Overall width Minimum transport width |
13' - 6" 14' - 9 1/4" 9' - 2 1/2" (With cutting height at 2") |
Overall length | 17' - 6" (With cutting height at 2") |
Deck height | 13" |
Cutting height* | 2" to 12" |
Lift hydraulics center deck right wing |
3 1/4" x 8" Rephasing hydraulic cylinder with hoses, fittings & stroke control spacers. 3" x 8" Rephasing hydraulic cylinder with hoses & fittings. |
Wing folding hydraulics | 3" x 12" single-acting hydraulic cylinder complete with hose & fittings. |
Wing flex | 45o up, 20o down while cutting. |
Deck material | 1 - Piece, 10 gauge. |
Side skirt material | 1/4" plate. |
Skid Shoes wing deck center deck weight box |
Replaceable: 1 Standard straight skid shoe and 1 AR400 leading skid shoe Replaceable: 2 Skid shoes Reversible & replaceable: 1 Skid shoe |
4 Blades (2 per carrier) | 1/2" x 4" Heat Treated Free Swinging Alloy Steel with up lift. |
Blade overlap | 6" |
Blade bolt | Keyed with hardened flat washer & locknut. |
Stump jumper / blade holder | 10 Gauge round dish shaped pan, reinforced with 1" x 4 1/2" blade mounting bar. |
Deck ring | Optional 3/8" formed and welded. |
Front & rear guards | Optional single chain or double chain. |
Input driveline | ASAE Cat. 6 with constant velocity u-joint. |
Intermediate & wing drivelines | Cat. 4 with slip-clutch or optional Cat. 5 with slip-clutch |
Tire options | 6" x 9 x 21" Laminated tires 27" x 7.75" Used aircraft tires with foam filling 29" x 9" Used aircraft tires without foam filling |
Number of wheels | 5 - Wheel option: 4 on transport axle and one on wing axle. 6 - Wheel option: 4 on transport axle and two on wing axle |
Standard transport axle | Spring-cushioned on center transport axle. |
Axle fasteners | 1 1/4" Greasable pins |
Hubs | Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" shafts. |
* Maximum cut height is dependent on tire options selected. | Â |
