Features

FEATURES BENEFITS
Large clamp spacing Stabilizes forks and spreads load across a wider area.
Large sliding clamp handles Makes clamping easier and insures tight secure fit.
Tall rear uprights Keep loads from slipping backwards.
PF10 Fork: 3" x 2" x 3/16" x 31 5/8" Tube
PF20 Fork: 3" x 2" x 1/4" x 35 5/8"Tube
Set of two pallet forks are capable of lifting 1,000 lbs.
Set of two pallet forks are capable of lifting 2,000 lbs.
Swiveling top and hinged bottom Insures easy fit and function.
Two capacities and two sizes Meets most needs for low cost fork lift handling on customers own front loader or skid steer loader.



Specifications

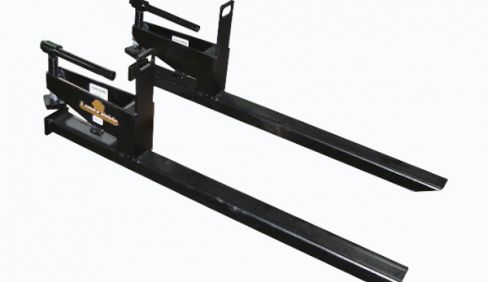

Description Model PF20
Lift Capacity Per Set of 2 Pallet Forks 2,000 lbs.
Tine Length 35 5/8"
Weight Each 55 lbs.
Tine Width 3"
Tine Height 2"
Threaded Clamp Rod 1 1/4" - 7"
Throat Opening 1 1/2"
Throat Depth 10 3/4"
Sliding Clamp Handles 9" Arm Length (Center of screw to end of arm)
