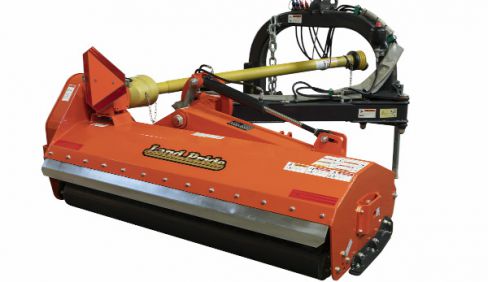

Land Pride OFM2672 » Roeder Implement Inc., Iowa

Double tap to zoom



Features

Features Benefits
Multiple cutting widths 60", 72", & 78"
(155, 185, & 213 cm)
Wide selection of cutting widths to meet specific applications.
Wide range of tractor horsepower 45 hp to 100 hp
(34 kW to 75 kW)
Fits a large array of tractors to meet the needs of consumers, municipalities, and landscapers.
Spring-loaded, belt-tensioning system Belt tensioner system brings the belt to proper tension by turning a jam nut. Makes maintaining proper belt tension easy, and increases belt life.
High blade cutting capacity Hammer blade can cut up to 2" (5 cm) brush and small saplings
Reverse rotor rotation Brings the cut material up and over the rotor which allows it to be dispersed more evenly. Allows material to be shredded completely.
High blade tip speed Creates a vacuum effect, provides a clean cut, and slices through saplings with great force.
Five drive belts Five drive belts distributes the load evenly, which prevents the belts from jumping off the drive when a shock load occurs.
Offset right The lateral arm allows the mower to be offset to the right 22 1/2" (57 cm) for a closer cut alongside buildings, fences, and roadsides.
It also allows the mower to be cutting in a ditch with the tractor traveling along side the ditch.
Rotor housing can be rotated from horizontal to 65o up or down Allows mowing along banks and in ditches without putting the tractor on steep inclining or declining surfaces.
Counter-blade (accessory) Assist shredding material into fine particles.
Replaceable skid shoes Prevents wear on end panels from ground contact.
Adjustable roller Provides precision cutting height between 1" and 2 3/4" (25 cm to 70 cm).

Specifications

MODEL OFM2672
Horsepower 75-130 HP
Min. Tractor Weight 6,900 lbs.
Hitch Cat. 2
Weight - lb (kg) 1,720 (780)
Working Width (cm) 73" (185.4)
Transport Width (cm) 83" (211)
Rotor Shaft Speed 1,800 RPM
Gearbox Rating 540 RPM
Driveline Cat. 3
Offset Hitch Right 22.5"
Rotate 65° Down, 90° Up
Blade Tip Speed 8,460 fpm
Hammer Blades - Qty 24
Rotor Diameter 6.5"
Rotor Rotation Reverse
Rotor Shaft Diameter 2"
Rotor Swing Diameter 18"
Min. Cutting Height 1"
Cutting Capacity 2"
Rear Roller Diameter 7.5"
Hood/Deck Thickness 8 Gauge
Skid Shoes Replaceable
