Land Pride SG2572
Double tap to zoom

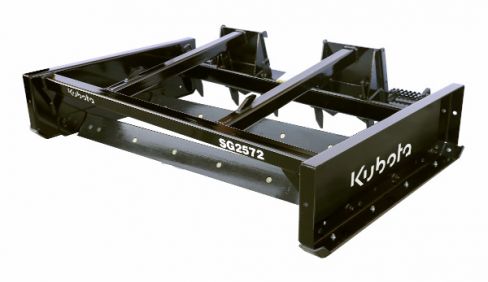

SG25 Series Skid Graders SG2572
Overview:
Landscapers, contractors, homeowners, and developers can level construction sites, prepare seedbeds, and rejuvenate driveways forwards or backwards. Ripper teeth break compacted soils for a better finish.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
FEATURES | BENEFITS |
Skid steer mounting plate. | Fits most/all skid steer front loader hitches. |
40-95 hp requirements. | Makes it compatible with many popular smaller sized skid steers and tractors in use today. |
Dual adjustable height grader blades. | Allows the grader to be adjusted to desired amount of cultivation, leveling, and grading action. |
3-Position scarifier shanks. | Allows shanks to be adjusted to two depths or above ground. |
Ripping-Only Functionality | Frame geometry gives the user the option to solely use straight shanks, reducing horsepower requirements when the surface requires multiple ripping passes. |
Reversible heat treated high carbon steel grading blades. | For excellent wear resistance and long service life. |
Hardened straight shanks. | Assures long service life. |
Full length heavy duty skid shoes. | Makes for easier operation and long unit life. |
Replaceable and reversible skid shoes. | Extends the life of the skid shoes. |
Heavy duty frame construction. | Assures long lasting reliability and performance. |
Specifications
Model | AP-SG2572 |
Working width      in (m) | 72 (1.83) |
Overall width      in (m) | 81 1/4 (2.06) |
Number of straight shanks | 6 |
Skid steer & tractor hp requirement      hp (kW) | 40-95 (29.8-70.8) |
Unit weight with shanks        lbs (kg) | 886 (401.9) |
Overall length               in (m) | 52 1/4 (1.33) |
Overall height          in (m) | 22 (55.9) |
Side panel height with skid shoes        in (m) | 15 1/2 (39.4) |
Side panel length         in (m) | 50 (1.27) |
Side panel thickness       in (m) | 1/4 (6) Thick with 2 3/4 (70) formed edges. |
Skid shoe construction      in (m) | 3/8 (10) Thick with a formed bevel to prevent gouging. |
Straight shank construction      in (m) | Heat-treated 3-position shank. |
Cutting edges       in (m) | Four 1/2 x 6 (1.3 x 15.2) high-carbon, heat-treated blades that are reversible and replaceable. |
Cutting edge adjustment       in (m) | Variable vertical adjustment from level grade to 1 1/2 (3.8) below grade. |
Shank adjustments      in (m) | 2 1/2 (64) and 3/4 (19) below grade level. 3/4 (19) above grade level. |
Hitch type | Skid steer mounting plate |
