Land Pride DZ3084
Double tap to zoom

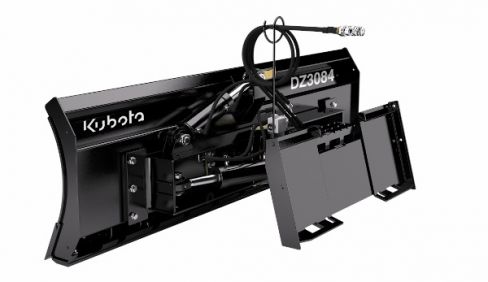

DZ30 Dozer Blades DZ3084
Overview:
This heavy-duty Dozer Blade is well-suited for contractors or landowners who are preparing rough grade, moving material around the job site, pushing silage or manure, or cutting or
clearing ditches.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Features | Benefits |
Universal Quick Attach-Hitch, Meets ISO 24410 | Design for quick and easy attachment to most skid steers and track loaders. |
Choice of 84" or 96" working widths | Allows customers to choose the blade that meets their operational needs. |
Blade pivots hydraulically 6-ways | Hydraulic adjustment provides for quick and easy blade positioning. Blade adjust 6-ways to meet the operator’s needs. |
Reinforced 3/8" moldboard with fully boxed bracing | Provides added strength and durability. |
3 1/2" Double acting welded hydraulic cylinders | Easily enables angling up to 30 degrees left or right, and tilts 10 degrees up or down. The material can easily be distributed where you want it to go. |
Standard operator mounting step | Provides for safer and easier mounting into and dismounting from the skid steer cab. |
26 1/2" Overall moldboard height | Provides ability to perform in deeper material conditions. |
Replaceable bottom wear edge | Protects underside of moldboard against wear. |
Reversible and replaceable 3-piece cutting edge | 3-Pieces so that the end user can replace the entire cutting edge or just the high-wear corner sections to reduce maintenance cost. |
Heavy 3" diameter pivot pins with greasable hardened spring bushings | Large diameter pivot pins stand up to rugged use. Lubrication helps protect against wear and rust seizing. Hardened bushings can be replaced if needed. |
Specifications
Model | DZ3084 |
Weight | 1345 lbs (610.1 kg) |
Hitch type | Skid steer type Universal Quick-Attach, meets ISO 24410 |
6-Way blade adjustment | Top of hitch plate tilts forward or backward. Blade angles left or right. Blade tilts clockwise or counterclockwise |
Maximum blade angle | 30 degrees left and 30 degrees right |
Maximum blade tilt | 10 degrees clockwise and 10 degrees counterclockwise |
Cylinder size | 3 1/2" bore x 8" stroke |
Maximum hydraulic pressure | 3500 psi (24.13 MPa) |
Maximum blade cutting width At straight across At 30 degree angle |
84" (2.13 m) 72 3/4" (1.85 m) |
Moldboard thickness | 3/8" (10 mm) |
Moldboard height | 26 1/2" (67.3 cm) |
Pivot bushings | Replaceable and greasable, hardened spring bushings |
Pivot pin sizes | Angle pin = 3" x 11 5/8" lg. Pivot pin = 3" x 2 13/16" lg. |
Cutting edges End cutting edges Center cutting edge |
3/4" x 8" x 8 1/2" (1.9 cm x 20.3 cm x 21.6 cm) 3/4" x 8" x 66" (1.9 cm x 20.3 cm x 1.68 m) |
Wear edge | 1/2" x 4" x 84" (1.3 cm x 10.2 cm x 2.13 m) |
