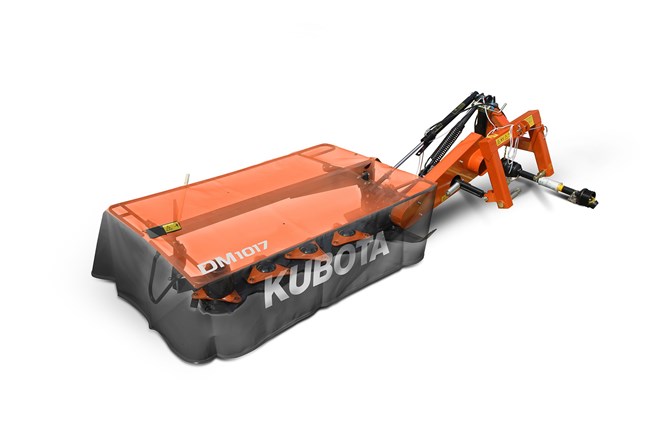

Kubota DM1017

DM1000, DM3000, DM4000 Series
With three blades per disc, Kubota mowers are always cutting. This design reduces load on each blade by two-thirds, balances the drive system, smooths power usage, and delivers a consistently neat, clean cut across the full working width.

DM1000, DM2000, DM3000, DM4000 Series
The fully welded cutter bar, built with overlapping C-channels, creates a rigid, heavy-duty design that delivers outstanding strength and long-term durability, even under demanding mowing conditions.

DM2000, DM3000, DM4000 Series
Kubota’s Non-Stop Breakaway technology protects the cutter bar by allowing the mowing unit to move both back and up when an obstacle is encountered, helping prevent damage and reduce downtime.

DM1000, DM2000 Series
All 1000 & 2000 Series Disc Mowers fold into a vertical transport position that brings the mower close to the tractor’s center of gravity. This design ensures excellent weight distribution and stability, making road transport safer and more comfortable.

DM1000 Series
Kubota 1000 Series Disc Mowers feature a fast-lift system for smooth, efficient turns on headlands. A dedicated cylinder raises the mower while the three-point hitch remains stationary. This reduces wear and tear by keeping the PTO angle consistent, minimizing vibration.

DM1000 Series
Every 1000 Series mower is equipped with a spring-loaded breakaway designed to protect the cutter bar and key components if you hit an obstacle. Resetting the system is quick and easy. With the mower in the working position, just back up a few feet, then get right back to mowing.

DM2000 Series
Kubota DM2000 models feature a highly flexible suspension that allows the mower to closely follow ground contours for a clean, consistent cut. This makes the DM2000 exceptionally well suited for slopes and hilly terrain, with an impressive operating angle of up to 35 degrees both up and down.

DM2000 Series
Kubota 2000 Series mowers are powered by a strong, flexible, spring-loaded V-belt drive. As belt tension changes, the spring pushes the drive wheel outward to automatically maintain proper belt tension, ensuring smooth, reliable power transfer.

With just 140 horsepower, Kubota’s DM3087 delivers an impressive 28' 7" of cutting width. This butterfly rear-mounted mowing solution lets operators cover large acreages efficiently while running a relatively small tractor, maximizing productivity without needing excessive horsepower.

DM3000 Series
The center suspension system ensures optimal tracking and precise ground-contour following for both mowing units. This design helps maintain a consistent cutting height and clean cut across uneven terrain.

DM4000 Series
To ensure the best possible ground adaptation, the mowing unit moves independently from the front linkage. This allows the mower to closely follow changing ground contours for a consistent, even cut.

DM4000 Series
By switching pulleys, the two-speed driveline can be set to Eco Speed, reducing PTO speed from 1,000 rpm to 750 rpm. This lowers fuel consumption while maintaining efficient mowing performance.

DM5000 Series
The Kubota DM5000 is designed to adapt exceptionally well to changing field conditions. Its active suspension system maintains even pressure across the entire cutter bar, helping deliver consistent cutting performance even in rough terrain.

DM5000 Series
The 5000 Series mowers can be equipped with the “Express” knife-changing system for fast, simple blade changes. Just move the lever over the bolt, compress the spring, and rotate the lever to "R" to release and replace the knives quickly and safely.

DM5000 Series
With 13.8 inches of upward suspension and 9.3 inches of downward adaptation, the DM5000 Series keeps the cutting discs positioned close to the ground at all times. An additional 17 degrees of sideward adaptation provides a clear advantage when working on hillsides and improves control during headland turns.

DM5000 Series
The 5000 Series offers a convenient transport solution with excellent road visibility. The side guards fold upward to make the mower as narrow as possible, reducing transport width from 10'6" to 9'10" on the 5028 and 5032, and from 13'1" to 12'5" on the 5040.

DM5000 Series
The swivel hitch gearbox is fixed to the machine's frame to minimize movement during operation, while still allowing unlimited rotational movement between the mower and the tractor. This design makes sharp turns easier without sacrificing stability.
