Kubota SVL97-3

New Products / Kubota / Construction / Track Loaders / SVL97-3

Double tap to zoom



Features

Standard 2-Speed Travel and Selectable One-Way Self-Level

Shift from low gear to high gear to get the job done faster. One-way hydraulic self-leveling can be engaged at the flip of a switch and helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.

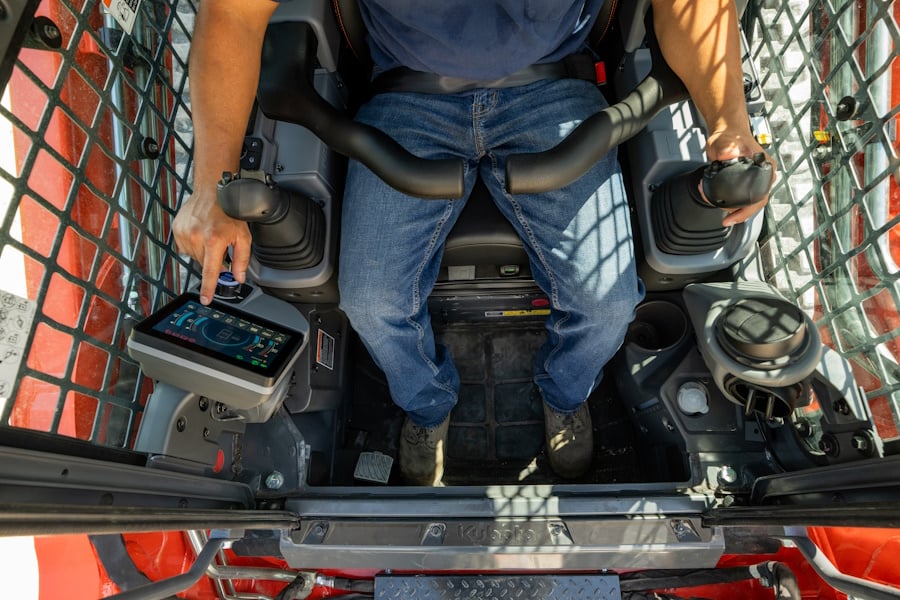

Available with Low Effort Hydraulic Pilot Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop. The Kubota exclusive ergonomically designed grips have all the necessary buttons and switches within reach.

Advanced Auto Downshift

The Advanced Auto Downshift system allows machine to smoothly drive into large piles or push heavy loads and gives outstanding turning performance. The ECU is constantly monitoring the traction load. When the traction load gets high, but before the machine starts to lose traction, it automatically shifts down for better low-range torque. Once the traction load is eased, it shifts back up automatically for high speed. Now you can just leave it in high speed regardless of the work!

One-piece, Sealed Cab

The SVL97-3 is equipped with Kubota’s new one-piece sealed cab that helps prevent dirt, dust, rain and debris from entering the operator space while also reducing noise levels.

Swing-out radiator

The swing-out radiator on the SVL97-3 opens up the engine compartment for easier access to routine service items.

Specifications

Specifications
Horsepower (gross)Horsepower (gross)96.4
Displacement cu. in. (cc)Displacement cu. in. (cc)230 (3769)
Overall Length, in (mm)Overall Length, in (mm)123.7 (3142)
Overall Height, in (mm)Overall Height, in (mm)83.1 (2111)
Overall Width, in (mm)Overall Width, in (mm)77.2 (1961)
Operating Weight, lbs (kg)Operating Weight, lbs (kg)11676 (5296) / 11989 (5411)
Operator StationOperator StationOpen cab / closed cab
Rated Operating Capacity (ROC), lbs (kg)Rated Operating Capacity (ROC), lbs (kg)3459 (1569)
Tipping Load, lbs (kg)Tipping Load, lbs (kg)9884 (4483)
Bucket Breakout Force, lbf (kg)Bucket Breakout Force, lbf (kg)7650 (37)
Lift Arm Breakout Force, lbf (kg)Lift Arm Breakout Force, lbf (kg)5288 (25)
Lift Arm PathLift Arm PathVertical
Track Width (standard/wide), in. (mm)Track Width (standard/wide), in. (mm)17.7 (450) / N/A
Ground Contact Pressure, psi (kPa)Ground Contact Pressure, psi (kPa)4.7 / 4.8
Track Rollers (per side)Track Rollers (per side)5
Track Ground Contact Length, in. (mm)Track Ground Contact Length, in. (mm)65.6 (1667)
Traveling Speed: High, mph (kph)Traveling Speed: High, mph (kph)8.4 (13.5)
Traveling Speed: Low, mph (kph)Traveling Speed: Low, mph (kph)5.5 (8.9)
Traction Force, lbf (kgf)Traction Force, lbf (kgf)13175 (59)
Ground Clearance, in (mm)Ground Clearance, in (mm)11 (279)
Auxiliary Hydraulic Pressure, psi (bar)Auxiliary Hydraulic Pressure, psi (bar)3553 (249.8)
Auxiliary Hydraulics Flow Rate, GPM (LPM)Auxiliary Hydraulics Flow Rate, GPM (LPM)40.0 (152)
Height to Hinge Pin, in (mm)Height to Hinge Pin, in (mm)128.5 (3263.9)
Ground Pressure, (psi)Ground Pressure, (psi)4.6 (0.32 bar)
