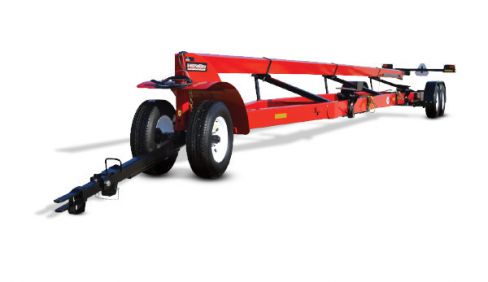

J&M Manufacturing TB-8000

Double tap to zoom



Features


Trail-Blazer Models TB-6000 and TB-8000 Series Header Transports are built with a stronger Arched Main Frame to carry the heaviest heads quickly and easily.

Heavier 4” x 8” thick wall steel tubing is used on both the frame and the upper bar to carry larger and heavier heads with less stress.

The front swivel ball axle provides excellent tracking and maneuverability. The rear tandem torsion-flex axles with highway speed rated tires absorb the worst field and road conditions and reduces the stress on both the head and header transport.

Models TB-6000A and TB-8000A are manufactured in compliance with the American Society of Agricultural Engineers guidelines and features a telescoping light bar with rear red and amber flashing lights, SMV emblem, standard front clevis or optional 2 5/16” ball hitch, two rear torsion axles with optional electric brakes and optional break-away safety brakes.

Models TB-6000H and TB-8000H are manufactured in compliance with the National Association of Trailer Manufacturers and feature rear red brake lights and center light bar, 4-wheel electric wheel brakes, break-away safety brakes, 2 5/16” ball hitch and an owner’s title for licensing.

  • Trail-Blazer Series Transport with Ag Standard Lighting Package
  • Upper Bar Support Arm for added strength and support when carrying the widest and heaviest heads.
  • Front and rear steering with automotive tow setting for true-tracking.

Specifications

Model TB-8000
Weight 3,800 lbs.
Capacity (Net) 18,500 lbs.
Spindle Size Two 2 1/4" Diameter (Front Axle); Four 2 1/2" Diameter (Rear Axles)
Wheel Size 16"x6" - 8 Bolt
Tire Size 235/85R16F
Steel Upper Bar 4"x8"
Upper Bar Length 32', 38', 42' or 48' Available on All Models
Arched Main Frame 4"x8"x1/4" Tubing on All Models
Rear Electric Brakes Optional on Ag Models, Standard on Hwy Models
Deluxe Light Package Ag Standard or Hwy Standard
