J&M Manufacturing HT–974L-30X
Double tap to zoom

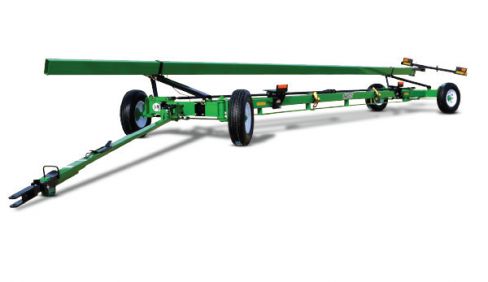

Low-Profile Series HT–974L-30X
Overview:
Designed for combines that have limited header travel, the standard duty low‑profile header transports come in 25', 30', or 36' long upper bar options. These strong, versatile transports have a 8,140‑10,620 lbs net carrying capacity.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- For heads up to 30'
- 24' 4" Wheel base
- 74" Center tread width
- 6 Hole hub
- 30' Steel upper bar
- Quick hitch tongue with spring assist
- Adjustable mounts
- Patented tie-down brackets with hook and strap assembly
- Light package
- 15"×6" wheels and 225/75R15E new tires
Specifications
| MODEL | HT-974L-30X |
| Weight | 1,870 lbs |
| Capacity (Net) | 10,500 lbs |
| Spindle Size | 1¾" Diameter |
| Wheel Size | 15"×6"- 6 Bolt |
| Tire Size | 225/75R15-E |
| Steel Upper Bar | 4"×6" |
| Upper Bar Length | 30' |
| Box Channel Axle Frame | 6" |
