Features

7 rows offers 68% More Ground Engagement

The Strawmaster 7 row gives you approximately 68% more ground coverage in the field. It’s combination of ground engagement and tine vibration can manage your crop residue without disturbing too much soil and losing moisture in the fall. In the spring you can break up lumps and clods and loosen the soil, which leaves a superior field finish and seedbed for the for seeding or planting.

Traditionally, more tines mean more wear parts. Every Strawmaster 7 comes equipped with standard carbide Endura-Tip tines. Which in addition to providing 4x the life of a standard harrow tine, actually which helps bust and move more straw.

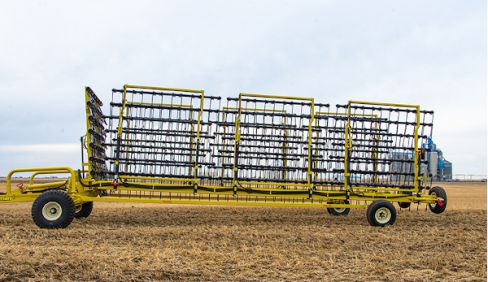

The Degelman Strawmaster 7 High Performance Field Conditioner features 7 rows of ½” x 26” tines with 1-7/16” spacing built on frame heavy enough to handle the toughest conditions. This means more time in the field and less time in the shop.

Specifications

SPECIFICATIONS  (Strawmaster 7000 Series 7 Bar)
Model SM70
Widths Available 70'
Weight 16,080 lbs
Horsepower (min) 400
Horsepower (ideal) 450
Transport Length 52'
Harrow Sections 7
Wing Beam 8" X 8" X 1/4"
Tires - Transport & End Wheel 12.5 L x 15



ALL MODELS
Transport Hitch Weight -300 lbs (upwards)
Transport Width 14' - 7"
Transport Height 11' - 6"
Trailer Frame 4" x 8" x 1/4"
Rows of Tines 7
Tine Spacing 14" Centers
Tine Section Frame 2" x 4" x 1/4"
Tine Size 1/2" x 26" Standard, Carbide Endura-Tip
Tine Replacement Easy Drop-Out Tine Bar
Hydraulics - Auto-Fold 3-1/2" x 31" x 2" Rod
Hydraulics - Center Beam Lift (optional) 3" x 8" x 1-1/4" Rod
Hydraulics - End Wheels (optional) 2-3/4" x 8" x 1-1/4" Rod
Hydraulics - Tine Angle (optional) Re-Phasing(incremental sizes)
Tires - Main Cart 16.5L x 16.1
