Case Waste Handler
/ NOT AVAILABLE
Double tap to zoom

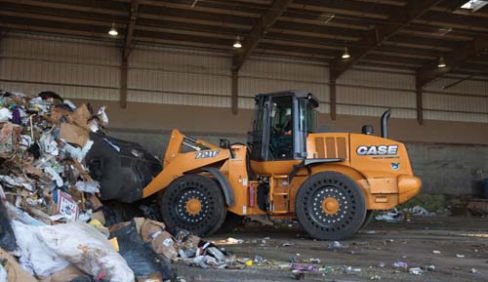

Full Size Wheel Loader Waste Handler
Overview:
The next generation of wheel loaders has been engineered to lift, load and protect with greater ease through even the harshest environments. Advanced Instrument Cluster provides you with ease of connectivity and controllability for more efficient lifting. Both the 621F and 721F Waste Handlers come equipped with heavy duty axles capable of withstanding 60 percent more load than standard versions. These powerful machines boast 16 customized guarding points to help protect and avoid costly damage. - Less
The next generation of wheel loaders has been engineered to lift, load and protect with greater ease through even the harshest environments. Advanced Instrument Cluster provides you with ease of connectivity and controllability for more efficient lifting. Both the 621F and 721F Waste Handlers come equipped with heavy d... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
CASE Waste Handler Wheel Loader
PROTECTION
The 621F WH and 721F WH were made to absorb impact from any angle with 16 customized guarding points, front and rear frame protectors, and widescreen guards. New heavy duty axles and solid tires deliver the perfect balance of durability, comfort and control. The Advanced Instrument Cluster (AIC) feature now provides your crew the ability to monitor fuel consumption, control excessive idling, and service warnings or other critical information with ease.
PRODUCTIVITY
With the industry’s most impressive gains in productivity, the Case Waste Handlers offer superior power and performance to tackle waste and scrap work of any size. The AIC feature provides you with ease of connectivity and controllability such as auto idle and four different power modes. The extended reach loader arms provide 20 percent more range, offering more efficient loading and unloading.
FUEL EFFICIENCY
At the heart of the 621F and 721F Waste Handlers is a 6.7-liter engine that uses SCR technology to improve fuel efficiency by up to 19 percent. Without the need to regenerate, you will no longer have to worry about downtime or burning additional fuel. The use of SCR technology delivers lower ambient temperatures to avoid any temperature spikes.
COMFORT/VISIBILITY
The advanced cab design keeps you comfortable in the dirtiest workplaces with primary and secondary cab filters which minimize dust, fumes and debris. The ROPS/FOPS cab offers an unobstructed view to the bucket with wide windows and a low engine cover. Delivering unsurpassed comfort and visibility, the 621F WH and 721F WH have ergonomically placed controls and award-winning Case joystick steering.
SERVICEABILITY
Maintenance is made easy with the hydraulic hood lift switch which raises the rear hood for complete ground-level access. New features including the specialized guarding and solid tires allow you to save on maintenance and maximize the lift of your new Waste Handler.
Specifications
ENGINE | |
Emission Rating | Interim Tier 4 |
Engine make / model | FPT F4HFE613Y |
Gross Power - hp (kW) | 195 (145) |
Net Power - hp (kW) | 179 (133) |
Rated RPM - rpm | 2000 |
Peak Torque - lbf / ft (Nm) | 701 (950) |
No. of Cylinders | 6 |
Displacement - Inches³ (ltr) | 411 (6.7) |
Alternator - Amp | 65 |
POWER TRAIN | |
Transmission Speeds | 4F - 3R |
Transmission Type | Powershift |
Max. Travel Speed Fwd - mph (kph) | 23.5 (37.8) |
Differential Lock - Front / Rear | F: 100 / R: Open |
HYDRAULIC SYSTEM | |
Main Pump Type | Axial Piston Pump |
Pump Flow - gallons (US) / min (lt/min) | 54.2 (206) |
System Pressure - PSI (bar) | 3625 (250) |
Steering Configuration | Articulation |
Service Brake Type | Wet Multi Disc |
Total Cycle Time - sec | 8.9 |
PERFORMANCE | |
Linkage Geometry | Z-Bar |
Full Turn Tipping Load - lbs (kg) | 23372 (10601) |
Bucket Breakout Force - lbf (kN) | 32907 (146.3) |
Dump Reach - Full Height - ft/in (mm) | 3 ft 7 in (1086) |
Reach 45-A Dump 7' Clearence - ft/in (mm) | 5 ft 4 in (1633) |
Max. Hinge Pin Height - ft/in (mm) | 13 ft 1 in (3979) |
Ref. Bucket capacity Heaped - yd³ (m³) | 3.01 (2.3) |
DIMENSIONS AND CAPACITIES | |
Overall Length with Bucket Down - ft/in (mm) | 24 ft 11 in (7596) |
Width over Tires - ft/in (mm) | 8 ft 8 in (2653) |
Height to Top of Cab - ft/in (mm) | 11 ft 1 in (3385) |
Turning Radius Outside Tire - ft/in (mm) | 18 ft 10 in (5750) |
Operating Weight - lbs (kg) | 32502 (14743) |
Fuel Tank - gallons (US) (ltr) | 65 (246) |
