Exclusive CASE G Series Productivity, Efficiency & Performance

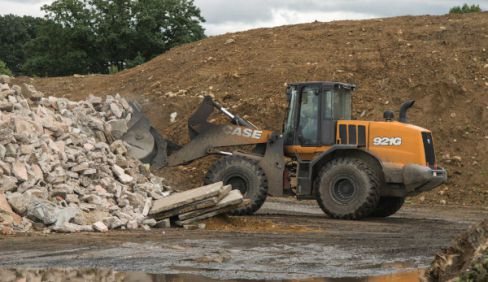

At the core of every CASE G Series wheel loader is power, fuel efficiency, and the comfortable and intuitive way the operator and the machine work together. The 921G is powered by an FPT engine with patented selective catalytic reduction (SCR) emissions technology — there’s no diesel particulate filter (DPF) and no regeneration. This creates greater fuel efficiency, keeps operating temperatures down and puts all working effort of the engine to the work. And standard Ride Control provides an extremely smooth ride with optimum material retention.

The CASE 921G offers auto-locking front and conventional/open rear differentials — ideal for operation on improved surfaces and consistent loading applications with a tight cycle.

An optional five-speed PowerShift transmission with lock-up torque converter provides faster acceleration and roading speeds up to 25 mph. And Powerinch provides incredible accuracy and control in tight loading areas, regardless of engine speed or grade.

Operation Made Even Easier

Enhancements to CASE G Series wheel loaders include adjustable electro-hydraulic controls that allow the operator to independently set boom and bucket responsiveness to smooth, moderate or aggressive — the aggressive setting with the bucket function is ideal for topping off trucks and hoppers by finely feathering/metering in material. A touchscreen display puts all core machine operating information and control within reach. Two simplified power modes — Smart and Max — let you work in the way that makes the most sense for your operation. And three color-coded, configurable buttons on the armrest make three pre-set tasks, functions or settings as easy as the push of a button - all with minimal movement or distraction for the operator.

Ensure Greater Uptime

Anything can be connected. It’s the ability to take action based on the information that connectivity provides that improves everything from fuel efficiency to productivity and uptime. Each CASE G Series wheel loader comes connected with the SiteConnect Module to improve telematics reporting (including additional parameters) and allow for critical functionality such as remote diagnostics and software updates. This provides a greater flow of information to business owners, fleet management personnel — and fleet management partners such as your local CASE dealer and CASE technical experts at the CASE Uptime Center.*

The connectivity of the SiteConnect Module also allows for reporting and ticketing with the optional integrated payload system, and reporting and features for the optional Tire Pressure Monitoring System (TPMS).

*When agreed to by the equipment owner

Improve Load Accuracy and Reporting

An optional, fully integrated payload system improves load accuracy and provides detailed real-time reporting (integrated in CASE SiteWatch telematics) for billing, tracking and operational performance. It helps prevent under- and over-loading of trucks, and ultimately results in faster cycle times with less hassle and wear and tear over time. And as it is integrated from the factory, the payload system is purpose-built for CASE G Series wheel loaders, is incorporated with the purchase/financing of the machine, and requires no installation time/aftermarket solutions.

Work in Comfort

A spacious cab with standard heating and air conditioning and an adjustable workstation gives the operator the perfect vantage point and comfort to get more done. A sweeping single-pane windshield with extensive floor to ceiling glass, combined with an optional LED light package and optional rearview camera on the touchscreen display (operable in all directions for greater awareness), gives the operator optimal visibility and confidence.

The 921G is also available with an optional premium heated seat, leather trim — and an electronic auto-weight adjustment and dynamic dampening system for a smoother ride. Optional joystick steering provides greater comfort and performance for all operations.

Keep it Cool. Keep it Clean.

The CASE-exclusive Mid-Mount Cooling Module allows all coolers to have access to cool, clean, ambient air for keeping mechanical and hydraulic systems cool. Its location also reduces the amount of dust and debris that gathers around the coolers over time. The 921G also features a standard programmable hydraulically driven reversing fan that helps prevent buildup and makes it easy to clean out debris.

Peak Groundline Serviceability

CASE G Series wheel loaders provide easy access to the engine compartment for excellent groundline serviceability. All major regular service points, including HVAC system filters and components, can be accessed from ground level — and remote drain ports are standard.

OPERATOR ENVIRONMENT

• ROPS cab AC w/ heat
• Key start
• Articulated power steering w/ tilt column
• Fully adjustable, suspension seat
• Foot throttle
• Single lever loader control w/ fully adjustable wrist rest, 2 cup holders
• 2 interior rear view mirrors
• 2 in (51 mm) retractable seat belt
• Multiple storage trays
• Single brake pedal
• F/N/R shuttle switch
• External rearview mirrors
• Pressurized air filtering
• Anti-glare window strip
• Front and Rear Defroster
• Side window, partial/fully open
• 2 Dome lights
• Wipers, rear and intermittent front
• Windshield washers, front and rear
• Rubber floor mat
• Horn
• Dispays/Gauges: Digital: Transmission oil temperature, Engine coolant temperature, Fuel level, DEF level
• LCD screen: Hour meter, Time, FNR indicator, Trip computer, Differential lock, Engine speed, Automatic transmission indicator, DeClutch indicator, Fuel consumption, Engine diagnostics, Error reporting, Travel speed, Gear selection, Engine mode indicator, Transmission diagnostics, DEF – Diesel Exhaust Fluid gauge
• Audible/Visual alarms:
• Warning lights: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Alternator, Low fuel;, Grid heater*, Brake pressure, Engine oil pressure, Steering pressure.
• Caution warnings: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Hydraulic filter, Alternator, Low fuel
• Critical warnings: Engine oil pressure, Brake pressure, Steering pressure - w/ aux. steering*, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature
• Backup alarm
• Maintenance reminders: Cab air filter, Engine oil filter, Fuel pre-filter, DEF tank vent filter
• SCR supply filter, Hydraulic oil and filter, Engine air filter, Engine coolant drive belt, Cab recirculation filter, Engine breather filter, Transmission breather, Front and rear axle fluid, SCR supply module filter
• NOTE: *If equipped w/ option

ENGINE

• Case/FPT F4HFE613R
• Tier 4 Final Certified
• Selectable work modes:
• Maximum Power
• Standard Power
• Economy Power
• Auto Power
• Turbocharger
• Charge air cooling vAutomatic belt tensioner
• Integral engine oil cooling
• Fuel filter with water trap
• Dual-element dry-type air cleaner
• Hydraulic-driven cooling fan
• Air-cooled radiator
• Mid-mounted cooling module
• Common rail electronic fuel injection

LOADER

• Z-Bar loader linkage
• Single control for lift and tilt
• Positive hold float
• Automatic return-to-dig
• Automatic height control
• Automatic return-to-travel
• Brake pedal transmission disconnect
• Bucket position indicator on bucket

DRIVETRAIN

• 4-wheel drive
• 4F/3R Selectable autoshift /manual shift transmission
• Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
• Onboard diagnostics
• Single lever electronic shift control
• F/N/R switch in loader control handle
• Downshift button
• Torque converter
• Open differential axles:
• Provides open type differentials in front and rear axles
• Outboard planetary axles
• Transmission oil cooler
• Brake pedal transmission disconnect – declutch
• Hydraulic wet disc brakes
• Spring-applied hydraulic release parking brake
• Limp-Home Mode
• Greasable rear axle trunnion
• 3-piece rims

HYDRAULICS

• Electro-hydraulic (EH) joystick loader control
• Low-effort steering
• Hydraulic driven cooling fan
• Diagnostic quick couplers
• Split flange hydraulic connections – 1 in or greater

ELECTRICAL

• Alternator and voltage regulator
• Battery isolator/electrical disconnect
• 120 amp alternator
• (2) 700 CCA 12-volt batteries
• Electric starter
• Lights:
• 2 Front and 2 rear halogen flood lights
• 2 Front driving headlights – high/ low beam with integrated turn signals
• 2 LED stop/ tail lights with integrated turn signals
• Key start /stop switch
• Backup alarm
• Centrally located fuse box with all electrical circuits protected
• Remote jump start posts

OTHER

• Electric hood lift
• Front and rear fenders, partial coverage
• Heavy counterweight
• Drawbar hitch
• Articulation locking bar
• Lift arm locking bar
• Lift and tie-down points – front /rear
• Remote drain points
• Grouped remote-mounted ecology drains:
• Engine oil
• Engine coolant
• Hydraulic oil
