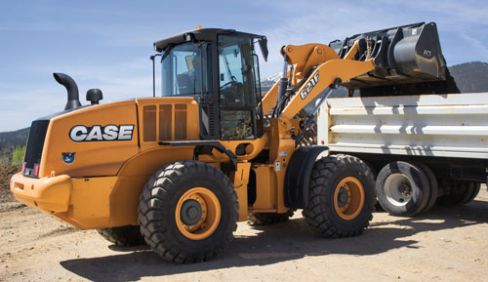

Case 621F » Roeder Implement Inc., Iowa

/ NOT AVAILABLE

Double tap to zoom



Features

Productivity

Efficiency is optimized by matching power to each task with four programmable power modes. The Ride Control™ option provides excellent material retention and better machine control when moving over rough terrain. This unit is also available with XT (Tool Carrier) or XR (extended reach) linkage and specialty configurations for even greater versatility and productivity.

Fuel Efficiency

Because of their idle-heavy applications and variable power demands, SCR (Selective Catalytic Reduction) Tier 4 Final technology is a fitting choice for this mid-sized wheel loader. As an after-treatment system, SCR lets the engine run at peak performance, which provides faster throttle response while also maintaining lower temperatures and delivering up to 20% better fuel efficiency over other solutions. Best yet, SCR is simple. No Diesel Particulate Filter regeneration or replacement. No extra downtime. No extreme temperature spikes. Just top off your DEF (Diesel Exhaust Fluid) and go. Fuel savings can be furthered with the standard engine shutdown feature — allowing the owner to limit engine idle time (meets requirements for an idle reduction device).

Comfort and Visibility

The 621F offers one of the industry’s quietest and most spacious cabs with class-leading visibility thanks to floor-to-ceiling windows and a low rear hood. Visibility can be enhanced even more with the optional rear-view camera. And an ISO-mount design, dual air filtration system and optional heated, air-ride seat help provide operators daylong comfort. Our award-winning joystick steering (another CASE exclusive) also helps reduce operator fatigue.

Serviceability

Tire wear on hard surfaces, along with applications using solid foam-filled tires can be reduced with the optional heavy duty axles with hydraulically locking front differentials. Routine cleaning is a breeze due to the cooling module position that limits debris buildup. And daily maintenance is made easy thanks to ground-level service checks, eye-level fluid gauges and an electronically lifted rear hood that provides complete engine access.

Specifications

OPERATOR ENVIRONMENT

  • ROPS cab w/ heat
  • Key start
  • Articulated power steering w/ tilt column
  • Fully adjustable, suspension seat
  • Foot throttle
  • Single lever loader control w/ wrist rest
  • Cup holder
  • Coat hook
  • 1 Interior rearview mirror
  • 2 in (51 mm) retractable seat belt
  • Storage tray behind seat
  • Cooled lunch box
  • Single brake pedal
  • F/N/R shuttle switch
  • External rearview mirrors
  • Lock box
  • Pressurized air filtering
  • Anti-glare window strip
  • Defroster
  • Side window, partial/fully open
  • Dome light
  • Wipers, rear and intermittent front
  • Windshield washers, front and rear
  • Rubber floor mat
  • Electronic Information Center
  • Horn
  • LCD screen: Hour meter, Time, FNR indicator, Trip computer, Differential lock, Engine speed, Automatic transmission indicator, DeClutch indicator, Fuel consumption, Engine diagnostics, Error reporting, Travel speed, Gear selection, Engine mode indicator, Transmission diagnostics, DEF – Diesel Exhaust Fluid gauge Audible/Visual alarms:
  • Warning lights: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Alternator, Low fuel;, Grid heater*, Brake pressure, Engine oil pressure, Steering pressure.
  • Caution alarm
  • Critical alarm
  • Backup alarm
  • NOTE: *If equipped w/ option



ENGINE

  • FPT F4HFE413W
  • Tier 4 Final Certified
  • Selectable work modes: Maximum power, Auto power, Standard power, Economy power
  • Turbocharger
  • Charge air cooling
  • Automatic fan belt tensioner
  • Integral engine oil cooling
  • Fuel filter with water trap
  • Dual-element air cleaner
  • Hydraulic-driven cooling fan
  • Air-cooled radiator
  • Mid-mounted cooling module
  • Common rail electronic fuel injection



LOADER

  • Z-Bar loader linkage
  • Single control for lift and tilt
  • Positive hold float
  • Automatic return-to-dig
  • Automatic height control
  • Automatic return-to-travel
  • Brake pedal transmission disconnect
  • Bucket position indicator on bucket



DRIVETRAIN

  • 4-wheel drive
  • 4F/3R Selectable autoshift/manual shift transmission
  • Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
  • Onboard diagnostics
  • Single lever electronic shift control
  • F/N/R switch in loader control handle
  • Downshift button
  • Torque converter
  • Limited-slip differentials – Z-Bar
  • Heavy-duty axles – XT/XR: with auto-locking front differential, rear conventional differential and with bronze sintered brake pads
  • Outboard planetary axles
  • Transmission oil cooler
  • Brake pedal transmission disconnect (declutch)
  • Hydraulic wet disc brakes
  • Spring-applied hydraulic release parking brake
  • Limp-Home Mode
  • Greasable rear axle trunnion
  • 3-piece rims



HYDRAULICS

  • 2-function loader valve with joystick control
  • Low-effort steering
  • Hydraulic driven cooling fan
  • Diagnostic quick couplers
  • Split flange hydraulic connections – 1 in or greater



ELECTRICAL

  • Alternator and voltage regulator
  • Electrical disconnect
  • 120 amp alternator
  • (2) 700 CCA 12-volt batteries
  • Electric starter
  • Lights: 2 Front and 2 rear halogen flood lights, 2 Front driving headlights – high/low beamwith integrated turn signals 2 LED stop/tail lights with integrated turn signals
  • Key start/stop switch
  • Backup alarm
  • Centrally located fuse box with all electrical circuits protected
  • Remote jump start receptacle



OTHER

  • Electric hood lift
  • Front and rear fenders, partial coverage
  • Heavy counterweight
  • Drawbar hitch
  • Articulation locking bar
  • Lift arm locking bar
  • Lift and tie-down points – front/rear
  • Remote drain points
  • Grouped remote-mounted ecology drains:
  • Engine oil
  • Engine coolant
  • Hydraulic oil
