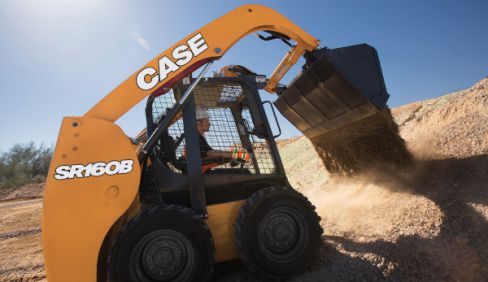

Case SR160B

Double tap to zoom



Features

Visibility and Comfort

CASE skid steers feature industry-leading visibility, and the SR160B offers a wide and comfortable cab for all-day performance.

Optimal Control

The CASE SR160B comes standard with mechanical controls and optional hand-and-foot controls for owners/operators who prefer that configuration.

Productivity and Performance

The SR160B offers 1,600-pounds of rated operating capacity (1,700 pounds with optional counterweights), 60 horsepower and auxiliary hydraulics for basic attachment use.

Ease of Ownership

All critical checks and service points are grouped at the rear of the machine for easy access. The SR160B features a diesel particulate filter (DPF) to meet Tier 4 Final emissions standards — a good solution for the machine size, typical application, engine layout and total cost of the machine.

Specifications

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

  • ROPS / FOPS Level 1 canopy w/ side screens
  • Keyed start ignition
  • Tilt ROPS / FOPS
  • Rear window w/ emergency escape
  • Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
  • Hand and foot throttle
  • Alarm package – back-up and horn
  • Rearview mirror
  • Headliner
  • Dome Light
  • Top window
  • Cup holder
  • 12V Power plug socket
  • Foot rest
  • Seat pocket
  • Padded seat bar w/ integral armrests
  • Loader control lockout system
  • Electric parking brake control
  • Operator’s compartment floor cleanout
  • Proportional auxiliary hydraulic control – on joystick
  • Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
  • Warning lights with alarms:
    • Engine coolant temperature
    • Engine oil pressure
    • Engine malfunction
    • Hydraulic charge pressure
    • Hydraulic filter restriction
    • Hydraulic oil temperature:
      • Critical system stop
      • Engine system
      • Hydraulic system
      • Electrical and diagnostic system
  • Warning alarms:
    • Battery voltage – plus display
    • Oil service
  • Indicator light:
    • Engine preheat
    • Parking brake
    • Seat bar reminder



ENGINE

  • Perkins/ISM N844LT-F-45SL diesel
  • 135.2 CID (2.2 L) Turbo
  • Tier 4 Final Certified
  • Spark Arresting Diesel Particulate Filter (DPF) muffler
  • Charged Air Cooler (CAC)
  • Indirect fuel injection
  • Horsepower:
    • Gross: 60 hp (44.7 kW)
    • Net: 57 hp (42.4 kW)
    • Peak torque: 139 lb·ft (188 N·m)
  • 120 amp alternator
  • Dual element air cleaner
  • Organic Acid Technology (OAT)
  • Anti-freeze solution to -34º F
  • Fuel tank - 16 gal (U.S.)
  • Over and under radiator and oil cooler
  • Single plane, top and bottom oil cooler/radiator configuration
  • Glow plugs
  • Integral engine oil cooler
  • Fuel filter with water trap
  • 925 CCA 12V battery
  • Master electrical disconnect



DRIVETRAIN

  • 1-speed hydrostatic four wheel drive
  • ASA #80 drive chain
  • SAHR disc parking brake



HYDRAULICS

  • Auxiliary hydraulics:
    • @ 3,050 psi (210 bar) – 18.4 gpm (69.7 L/min)
  • 6 micron oil filtration system
  • 3-spool loader control valve
  • Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
  • Hydraulic circuit pedal lock
  • Auxiliary function lockout override
  • Loader lift lockout override
  • Heavy-duty hydraulic oil cooler
  • Loader arm float position
  • Loader function lockout system



LOADER

  • Manual attachment coupler
  • Radial lift geometry
  • Loader lift arm support strut



TIRES

  • 10 X 16.5 Heavy duty



OTHER STANDARD FEATURES

  • Halogen lights – 2 front, 2 side, 2 rear flood
  • Pre-wired for rotating beacon
  • Lockable service access hood
  • Single-point daily service
  • Rear tail lights
  • Remote oil drain
  • Remote oil and fuel filters
  • Block heater
  • Debris ingression sealing
  • Mounting points for add-on counterweights



OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

  • Enclosed cab:
    • Fully sealed and pressurized – FSP
    • Glass door with wiper and washer
    • Sliding side windows – removable
    • AM / FM Bluetooth radio with 2 speakers
    • Keyless start ignition
    • Control lockout system
  • Mechanical hand controls
  • Hand and foot controls:
    • Hand controls the loader drive function and foot controls the bucket and boom
  • Deluxe cloth, air suspension seat, with heater and lumbar support
  • Demolition cab door with polycarbonate
  • FOPS level 2



HYDRAULICS

  • Second auxiliary hydraulics
  • Hydraulic one-way self-leveling
  • Ride control



LOADER

  • Hydraulic attachment coupler



OTHER

  • Language decals
  • Buckets
  • Bolt-on bucket cutting edges
  • Special paint
  • Offsite service arrangement
  • Telematics



FACTORY SUPPLIED ATTACHMENTS

  • Add-on counterweights
  • Road lights
  • Rotating beacon
  • Four-corner LED strobe



SERVICE PARTS

  • 3 inch (76.2 mm) retractable seat belt
  • Bolt-on heavy-duty bucket teeth
