Features

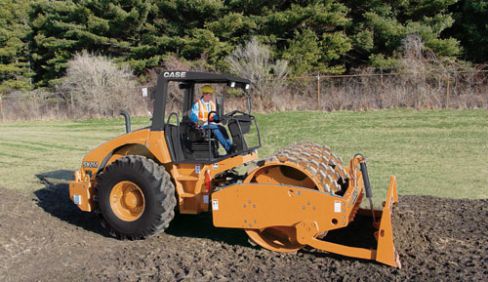

CASE SV216 Compactor

PRODUCTIVITY
Excellent gradeability is provided through the high-traction, hydrostatic drive system. Effectiveness on uneven or difficult terrain is enhanced by an articulation joint that oscillates as well.

FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.

COMFORT/VISIBILITY
Comfort is increased with an ergonomic work environment and swivel seat that adjusts 50 degrees. Rear visibility is maximized with the sloping rear deck.

SERVICEABILITY
This machine offers outstanding service access with an easy-lift engine cover and operator platform.

Specifications

ENGINE
Emission Rating Tier 3
Engine manufacturer Cummins
Engine model QSB 4.5
Engine rated power - hp (kW) 148 (110)
Rated speed - rpm 2200
Displacement - Inches³ (ltr) 275 (4.5)
Amplitude - stage 1 - inches (mm) 0.039 (1)
Amplitude - stage 2 - inches (mm) 0.079 (2)
Frequency - stage 1 - Hz 29
Frequency - stage 2 - Hz 35
Centrifugal force - stage 1 - lbf (kN) 53261 (237)
Centrifugal force - stage 2 - lbf (kN) 73037 (325)

DIMENSIONS
Overall length - inches (mm) 232.3 (5900)
Overall width - inches (mm) 88.9 (2250)
Height over ROPS - inches (mm) 121 (3100)
Curb clearance - inches (mm) 17.3 (44)
Steering angle - ± ° 36
Turn radius - inside - inches (mm) 120 (3050)
Turn radius - outside - inches (mm) 211.2 (5370)
Drum width - inches (mm) 84 (2130)

WEIGHTS
Operating weight - lbs (kg) 33730 (15300)
