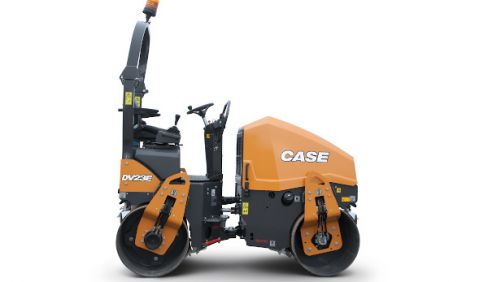

Case DV23E » Roeder Implement Inc., Iowa

Double tap to zoom



Features

Redesigned Operator Interface

A completely redesigned operator interface provides intuitive operation and improved ergonomics. Control features include an electronic travel lever with an extended range of functions right at the operator’s fingertips, including RPM settings, drive settings, sprinkler system controls, parking brake and more.

Even Greater Control

Mode selector offers three modes — loading, working and transport — to maximize machine performance and fuel efficiency. Choose between two drive settings; soft drive delivers a smooth ride during asphalt compaction applications, optional hard drive allows the operator to make swift turns, similar to a machine with a mechanical lever.

Big Roller Performance

Each E Series compact DV roller features high centrifugal forces and frequencies at lower RPMs, improving performance and fuel efficiency. Selectable dual vibration frequencies further improve productivity and allow operators to dial the machine in to meet the specific compaction needs of the job.

Groundline Serviceability = Uptime and Simplicity

CASE series rollers are designed for groundline serviceability with all fluid ports, drains and service checkpoints grouped on one side of the machine for easy access.

Specifications

STANDARD EQUIPMENT

OTHER

  • Foldable ROPS
  • Anti-vandal guard
  • Hydrostatic drive
  • Articulated chassis
  • Hydraulic oil cooler
  • Backup alarm
  • Tapered drum edges
  • Vulcollon scrapers – adjustable
  • Master disconnect switch
  • Horn
  • Hourmeter
  • 4-point lift and tie down provision
  • Flip open hood
  • Spin-on fuel, engine oil, and hydraulic filters



OPERATOR ENVIRONMENT

  • Lateral shifting suspension seat w/ foldable arms
  • 3 in (76.2 mm) retractable seat belt
  • Emergency stop button
  • Electric fuse protection



INDICATOR LIGHTS

  • Battery
  • Engine oil pressure
  • Intake preheater
  • Engine temperature
  • Parking brake on/off
  • Hydraulic oil temperature
  • Low fuel indicator
  • Worklight indicator
  • Turn signal indicator
  • Fuel gauge
  • Operator hours



WATER SYSTEM

  • Pressurized water system
  • 2-stage water filtration
  • Water system drains
  • 50.2 gal (190 L) Polyethylene water tank



VIBRATION SYSTEM

  • Dual drum vibration
  • Dual frequency vibration
  • Front/Dual drum vibration control
  • Auto vibration stop in neutral



OPTIONAL EQUIPMENT

OTHER

  • Rotating beacon
  • Weather canopy
  • Steel canopy
  • 2 in (51 mm) retractable seat belt
  • Tiltable drum scraper
  • Infrared thermometer
  • Edge cutter
  • 2 Front and 1 Rear road light, turn signals and flashers
  • Traction assist
  • 2 lights on ROPS (N/A on Weather Canopy)
  • Arm rests on seat
  • Right & Left Side drive levers
  • Heated seat
  • ACE Force Intelligent compaction
  • Locking water tank cap
