Productivity

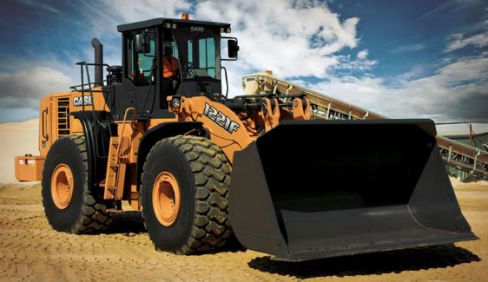

With a new, powerful Tier 4 engine, the Case 1221F is prepared to run longer, lift faster, reach further and consume less fuel. The new power shift transmission combined with transmission mode settings allow you to set the transmission to the specific application needed – ultimately maximizing productivity and performance. Load capacities of up to 34 tons deliver up to 28% better performance from dusk to dawn.

Fuel Efficiency

CEGR with a Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) offer Tier 4 interim certification and provide clean burning power and plenty of torque to move more material per hour. Improved overall side panel air flow along with cleaner direct air flow combine to ensure extended service intervals and component life.

Comfort and Visibility

The drastically improved operator environment now offers a larger, more enhanced operator platform all within a quiet cab. With an improvement of 18% in cooling capacity, a new, full glass door, and increased visibility the 1221F delivers the most convenient and comfortable experience in the industry.

Serviceability

Minimize maintenance time with easily accessible daily service points and drain valves. The Case 1221F was built with you in mind, relocating the fuel fill point, the cooling fan, and radiator assembly to ensure effective cleanouts and eliminate downtime.

OPERATOR ENVIRONMENT

• ROPS cab w/ heat and air conditioning
• Key start
• Articulated power steering w/ tilt column
• Fully adjustable, suspension seat, clothcovered
• 2 in (51 mm) retractable seat belt
• Foot throttle
• Single lever 2-function loader control w/ wrist rest
• Cup holder
• Coat hook
• (1) Interior rearview mirror
• Storage tray behind seat
• Lunch box compartment
• Single brake pedal
• F/N/R shuttle switch
• Glove box
• Pressurized air filtering
• Anti-glare window strip
• Defroster
• Side window, partial/fully open
• Dome light
• Wipers, rear and intermittent front
• Windshield washers, front and rear
• Rubber floor mat
• Horn
• Dispays/Gauges
• Analog: Engine coolant temperature, Fuel level, Transmission oil temperature, Hydraulic oil temperature
• LCD screen: Hour meter, Time, FNR indication, Trip computer, Metric/english, Differential lock, Joystick steering indicator, Engine speed; Automatic trans indication, DeClutch indication, Fuel consumption, Engine diagnostics; Error reporting, Travel speed, Current gear selection, Engine mode indication; Multiple languages, Transmission diagnostics; DEF (diesel exhaust fluid) gauge; Engine oil temperature, Oil pressure, Coolant temperature, Transmission oil temperature, Transmission sump oil temperature, Hydraulic oil temperature, System voltage, Turbocharger air temperature, Fuel level percentage, Warning prompts
• Audible/ Visual alarms:
• Warning lights: Main warning, Low fuel, Turn signals, Four-way flashers, High beam lights, Grid heater*, Low brake pressure, Low steering pressure, Parking brake
• Caution alarm: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Hydraulic filter, Alternator, Low fuel
• Critical alarm: Engine oil pressure, Brake pressure, Steering pressure – w/ aux. steering*, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature
• Backup alarm
• NOTE: *If equipped w/ option.

ENGINE

• Cummins QSX 11.9
• Tier 4 Interim Certified
• Turbocharger
• Charge air cooling
• Automatic fan belt tensioner
• Integral engine oil cooling
• Fuel filter with water trap
• Dual element air cleaner
• Liquid-cooled radiator
• Non spark-arresting muffler
• Grid heater
• Fuel heater

LOADER

• Z-Bar loader linkage
• Single control for lift and tilt
• Positive hold float
• Automatic return-to-dig
• Automatic height control
• Automatic return-to-travel
• Brake pedal transmission disconnect
• Bucket position indicator on bucket

DRIVETRAIN

• 4-wheel drive
• Axle coolers
• 4F/3R Selectable autoshift/manual shift transmission
• Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
• Onboard diagnostics
• Single lever electronic shift control
• Downshift button
• Torque converter
• Outboard planetary axles
• Front locking differentials
• Transmission oil cooler
• Brake pedal transmission disconnect
• Hydraulic wet disc brakes
• Spring-applied hydraulic release parking brake

HYDRAULICS

• 3-spool joystick and auxiliary control lever
• Low-effort steering
• Hydraulic driven fan
• Reversing fan
• Temperature controlled
• 8 Diagnostic quick couplers

ELECTRICAL

• 70 amp alternator
• (2) 1000 CCA 12-volt batteries
• Lights: 2 Front driving headlights – high/low beam, 2 Front flood, 2 LED stop and tail lights * 2 Rear flood, Front and rear turn signal/flash
• KBackup alarm

OTHER

• Front and rear fenders
• Standard counterweight
• Drawbar hitch
• Articulation locking bar
• Lift and tie-down points – front/rear
• RH steps and platform
• Heated side mirrors
• DC converter – 24 Volt to 12 Volt
• Radio/USB/CD player – Bluetooth hands-free
